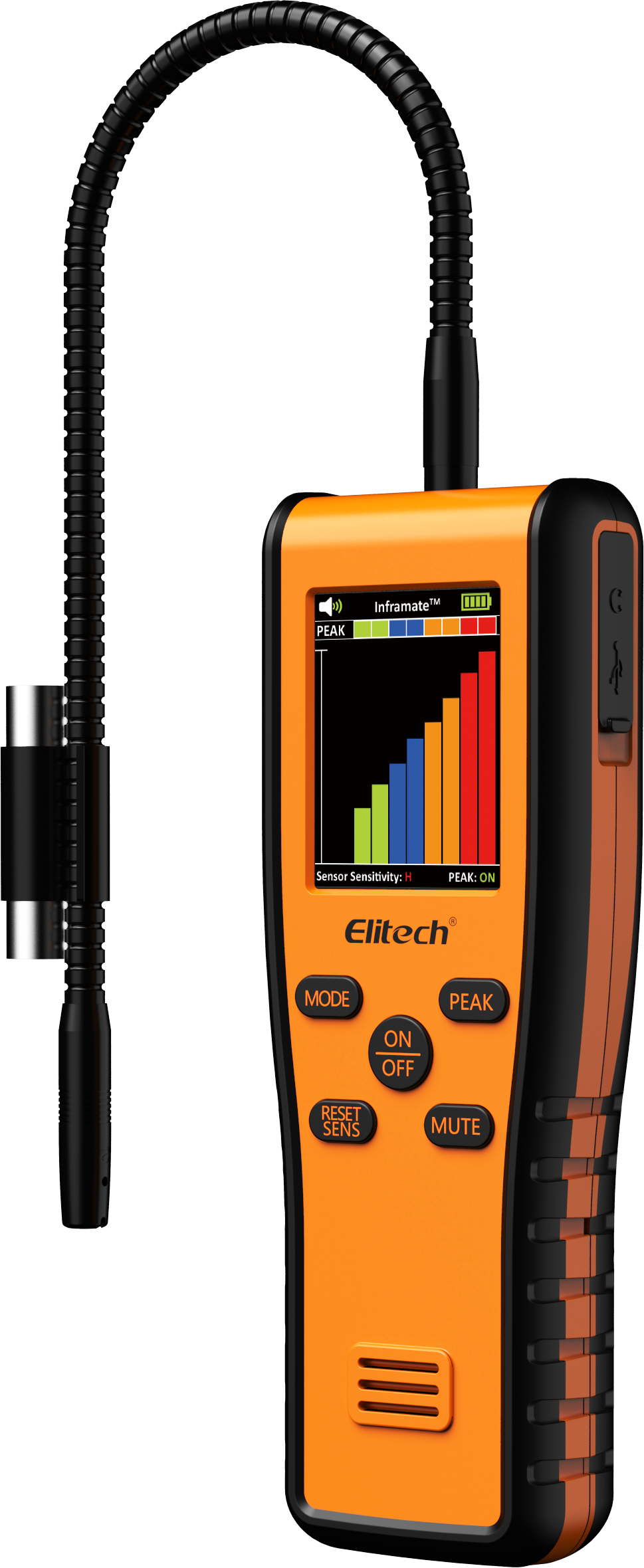

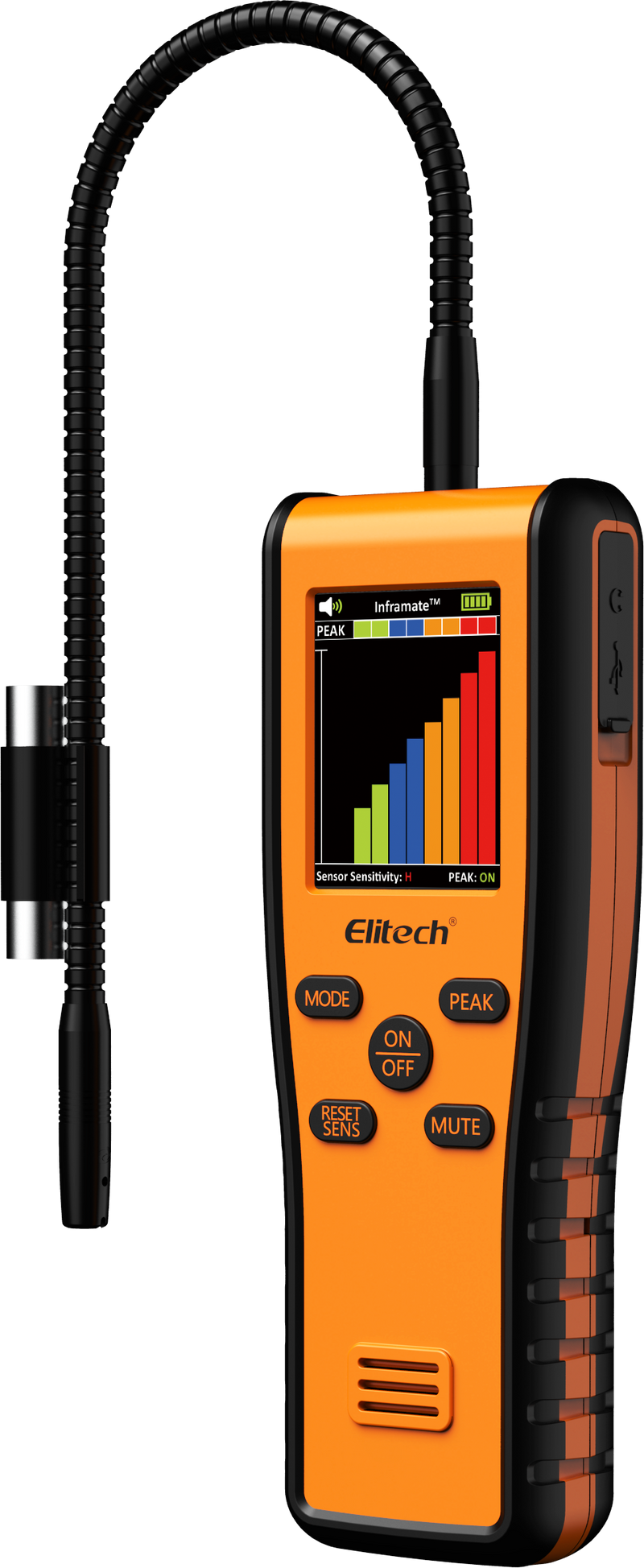

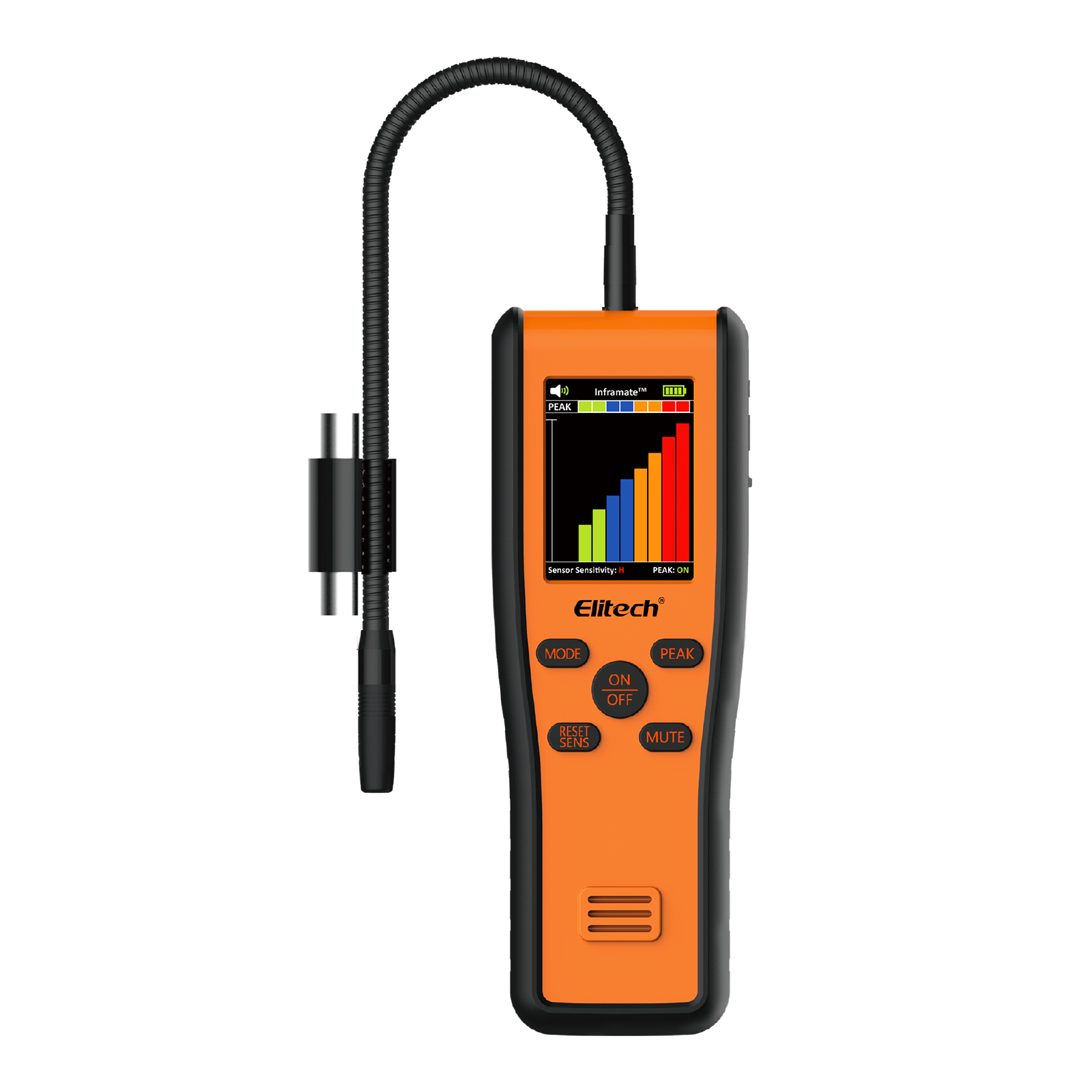

Elitech Inframate S Leak Detector

Elitech is one of the world's most innovative makers of HVAC-R and cold chain monitoring and control hardware, trusted by the World Health Organization, the United Nations, Sanofi, Haier, Bosch, Grainger, Schneider Electric, Panasonic, and more.

Description

The Inframate series are hand-held infrared refrigerant leak detectors that are independently developed by Elitech based on the infrared detection principle. Compared with traditional corona or heated diode detectors, this series features a sensor with higher accuracy and a much longer service life. It detects more types of refrigerants and avoids damage from high concentrations of refrigerants. Additionally, with an exclusive ergonomic design and an innovative large TFT LCD display screen, the detector optimizes the user experience and presents detection results more intuitively and diversely.

See the provided operations instructions videos for more details.

Key Features

• Non-damaged refrigerant infrared sensor under high concentration condition
• Detection accuracy: 4g/yr. The infrared principle guarantees that the accuracy will not drift for 10 years
• Strong anti-interference: Locate leaks easily in complex environments
• Adjustable sensitivity: High, Medium and Low level to allow technicians to adapt to different environments
• Peak Function: With a single button press, the Peak Function captures the highest leakage value detected during refrigerant leak testing
• Large High Res Screen: The 2.8" high resolution TFT screen provides vibrant colors and fast refresh rates, presenting clear and easy to read reading
• Rugged Build: Features an advanced ergonomic design along with a rugged build that can handle the toughest site conditions
• High-capacity battery: 4V 3000mAh lithium battery delivers up to 8 hours of continuous leak detection after a quick 4hr charge
• Earphone design: allows technicians to clearly hear the alarm and better pinpoint leaks
• Long sensor life: 10 years

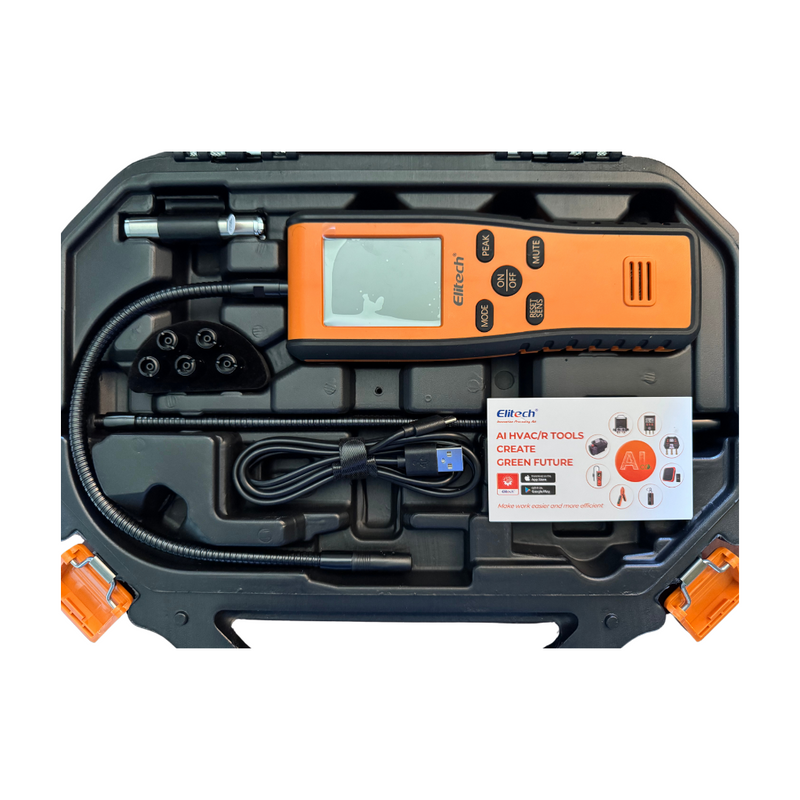

What's Included

• Infrared Leak Detector
• UV LED
• User Manual
• Plastic Case
• Charging Cable
• Filter Components

Technical Specifications

Downloads

• Manual
