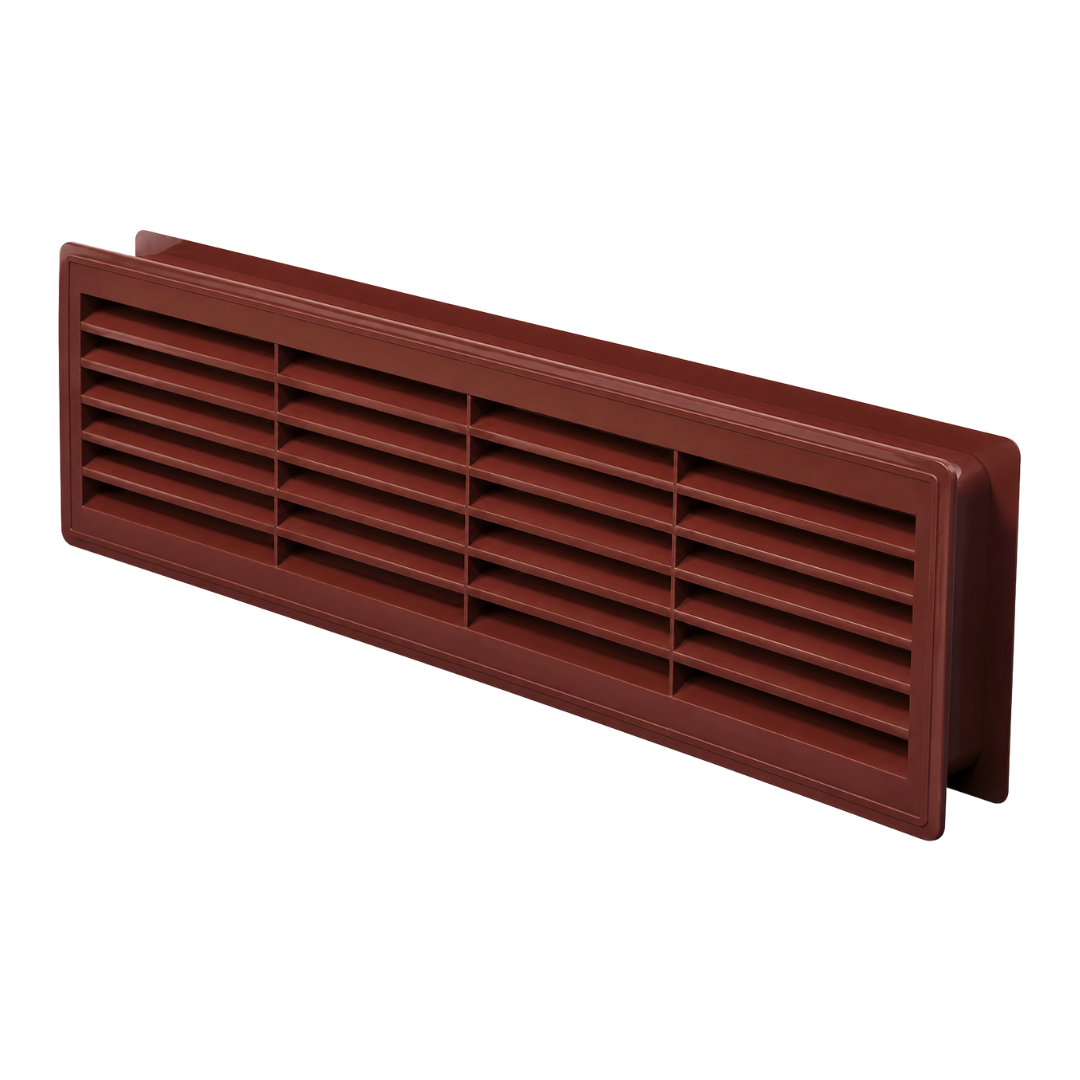

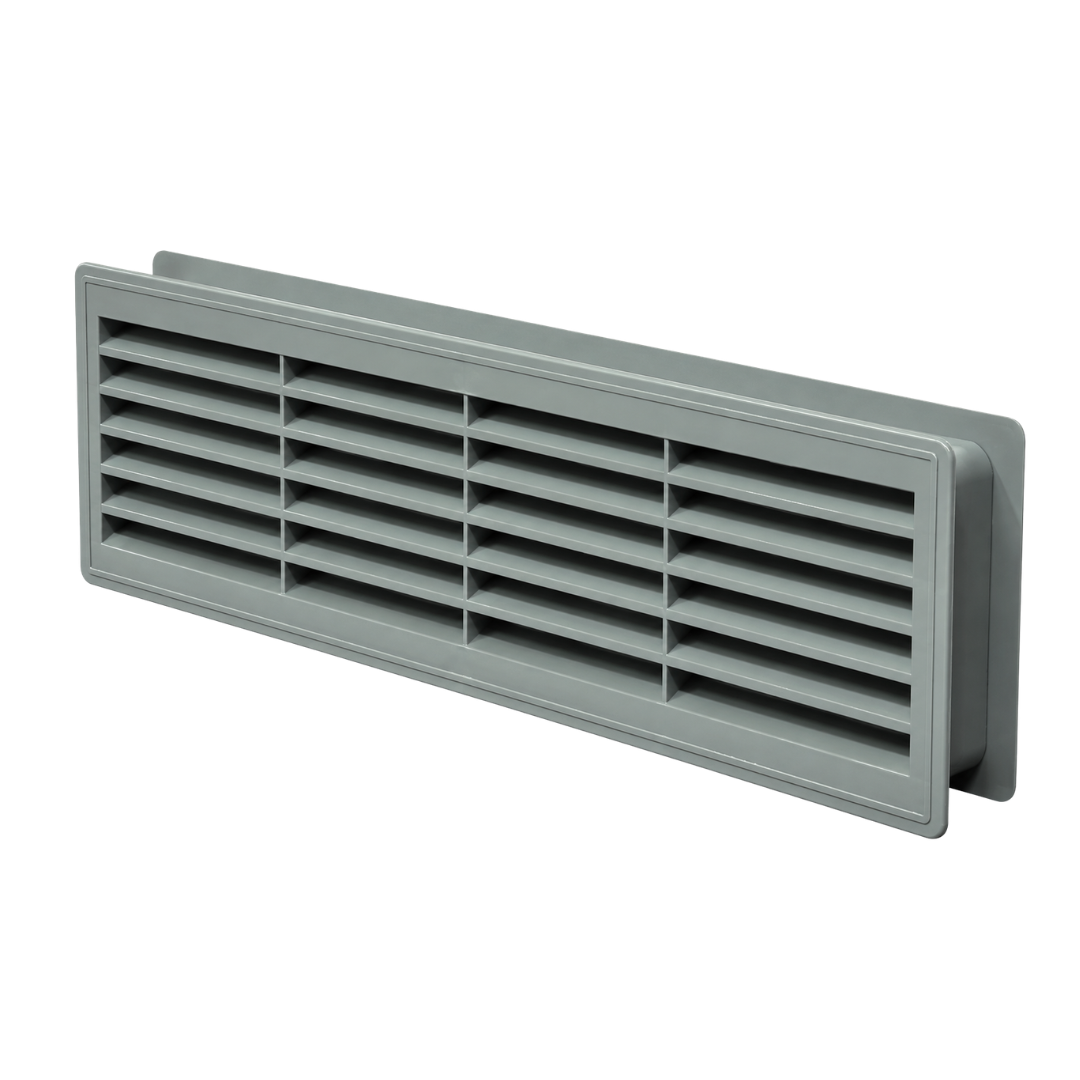

Product Description

• Ideal for ensuring proper air flow through interior doors in apartments, offices, public utility rooms, etc. while maintaining a pleasing aesthetic

• Designed for door thickness of 1-3/8" (1.38”-1.42”). However, neck depth can be adjusted to accommodate a range of door thicknesses, between 1.26”-1.78”

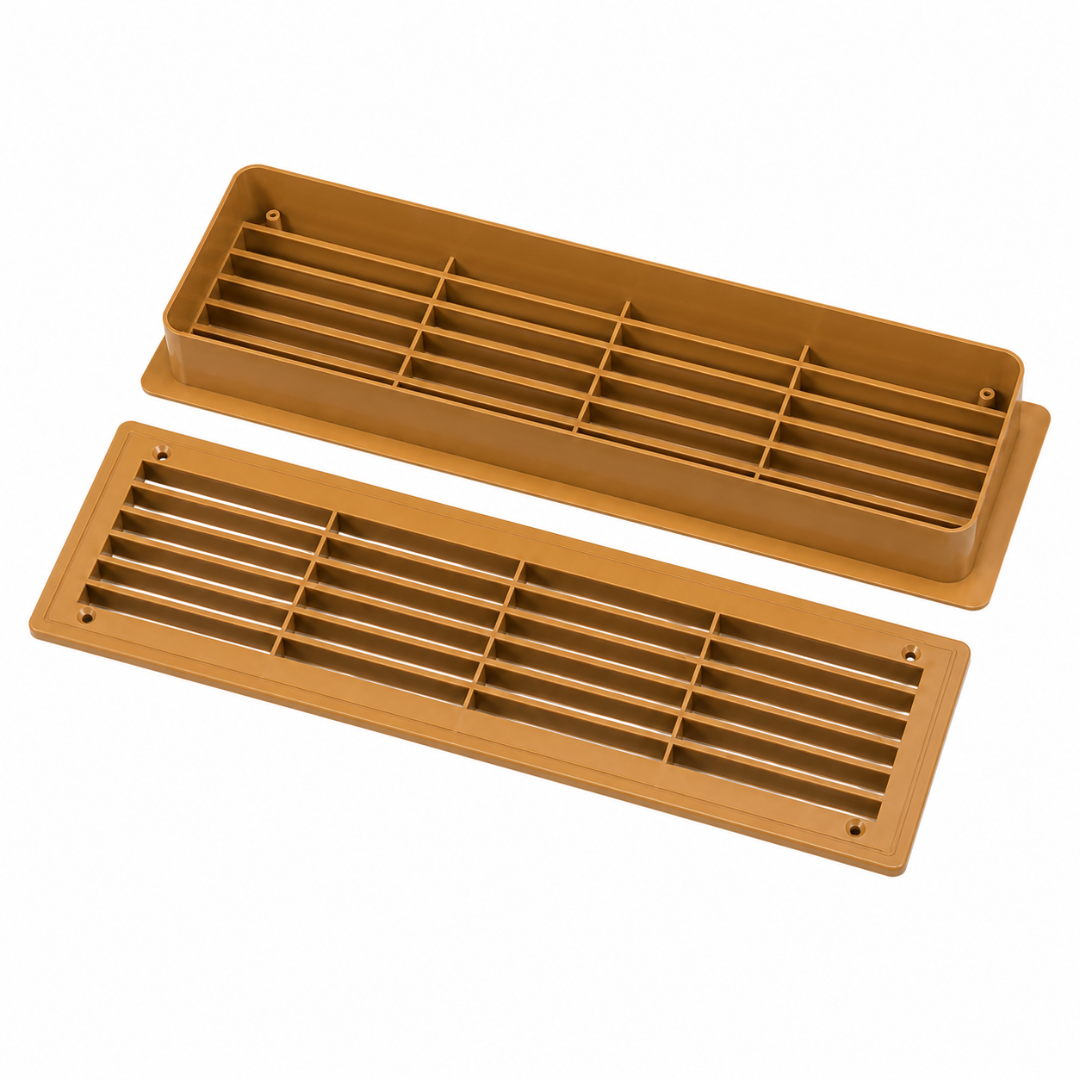

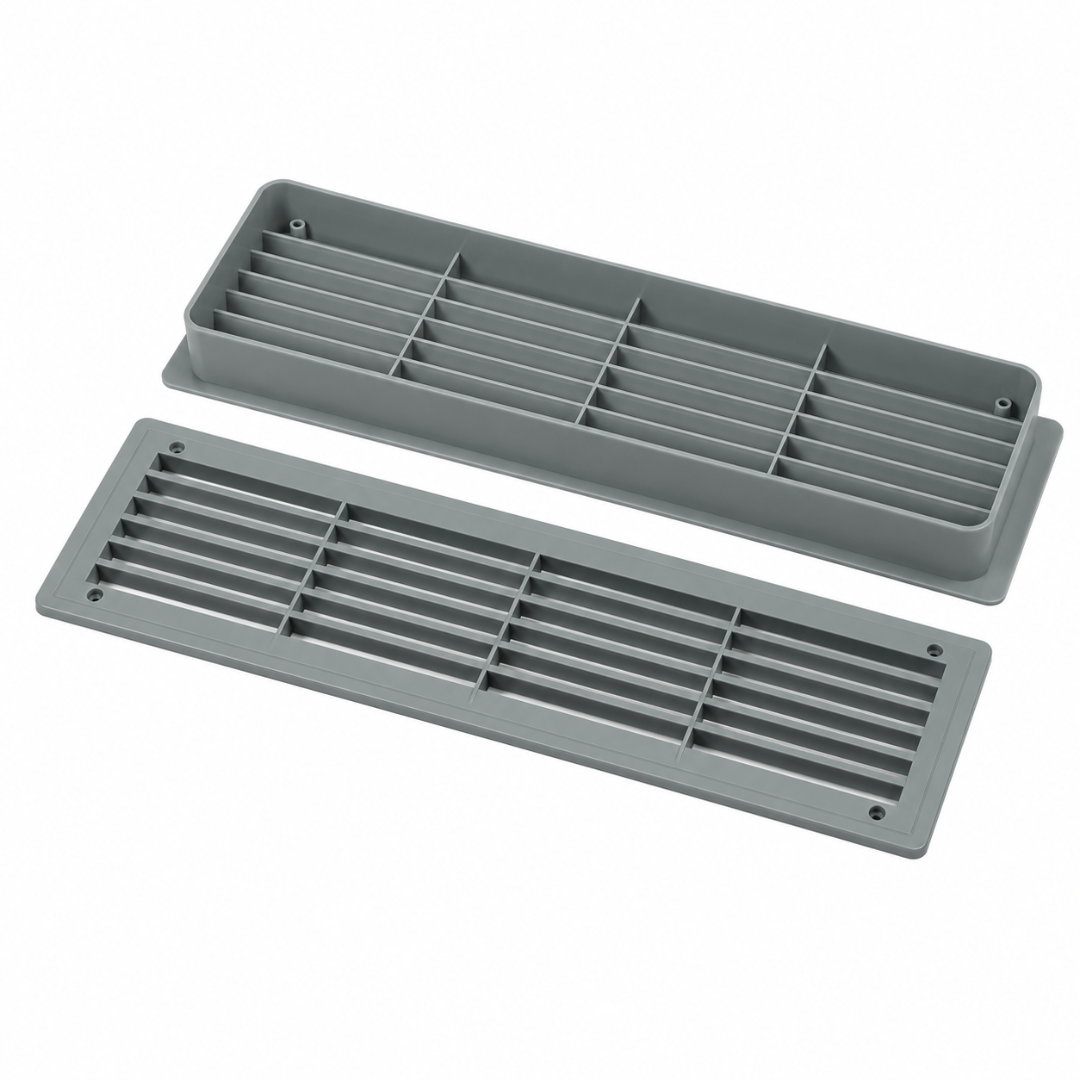

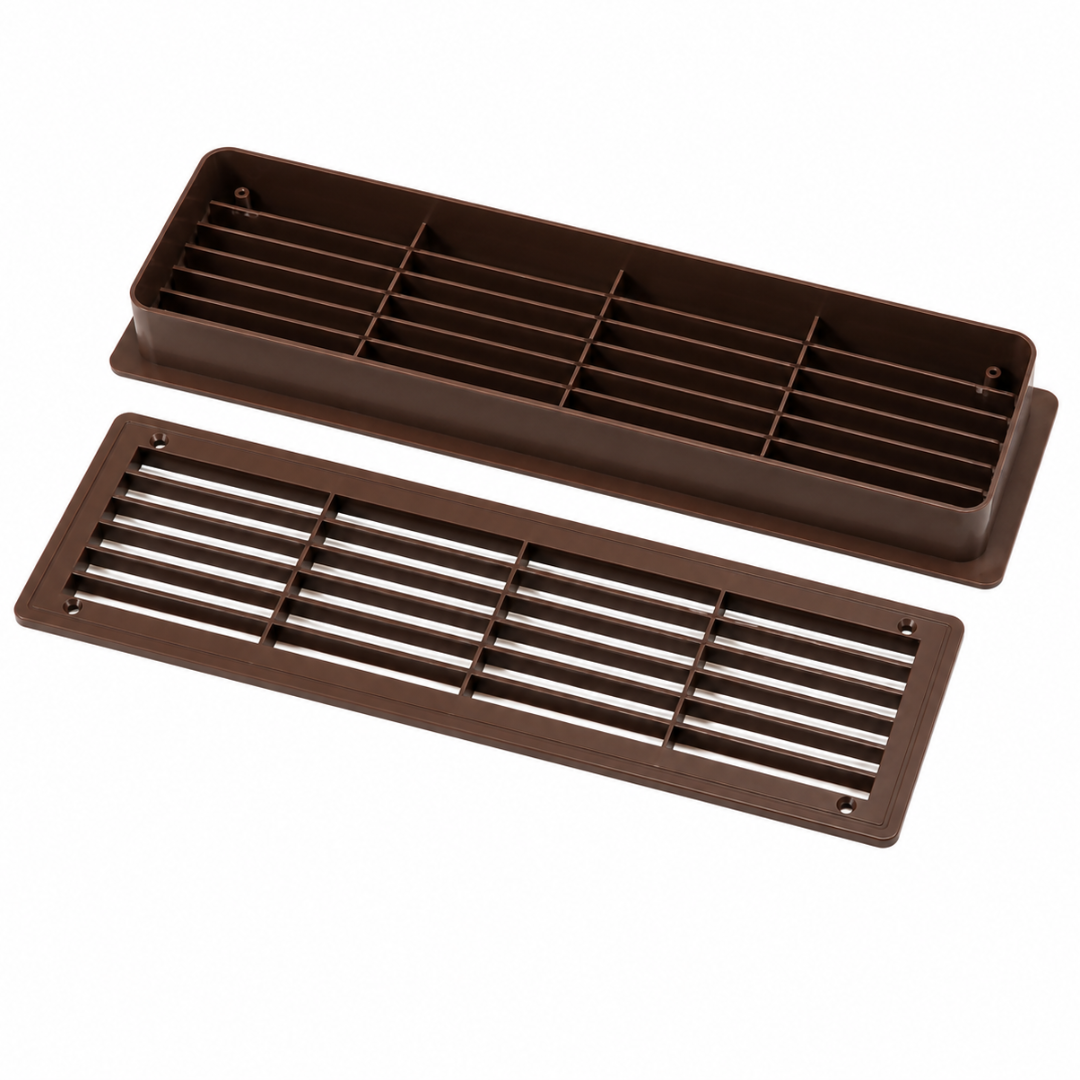

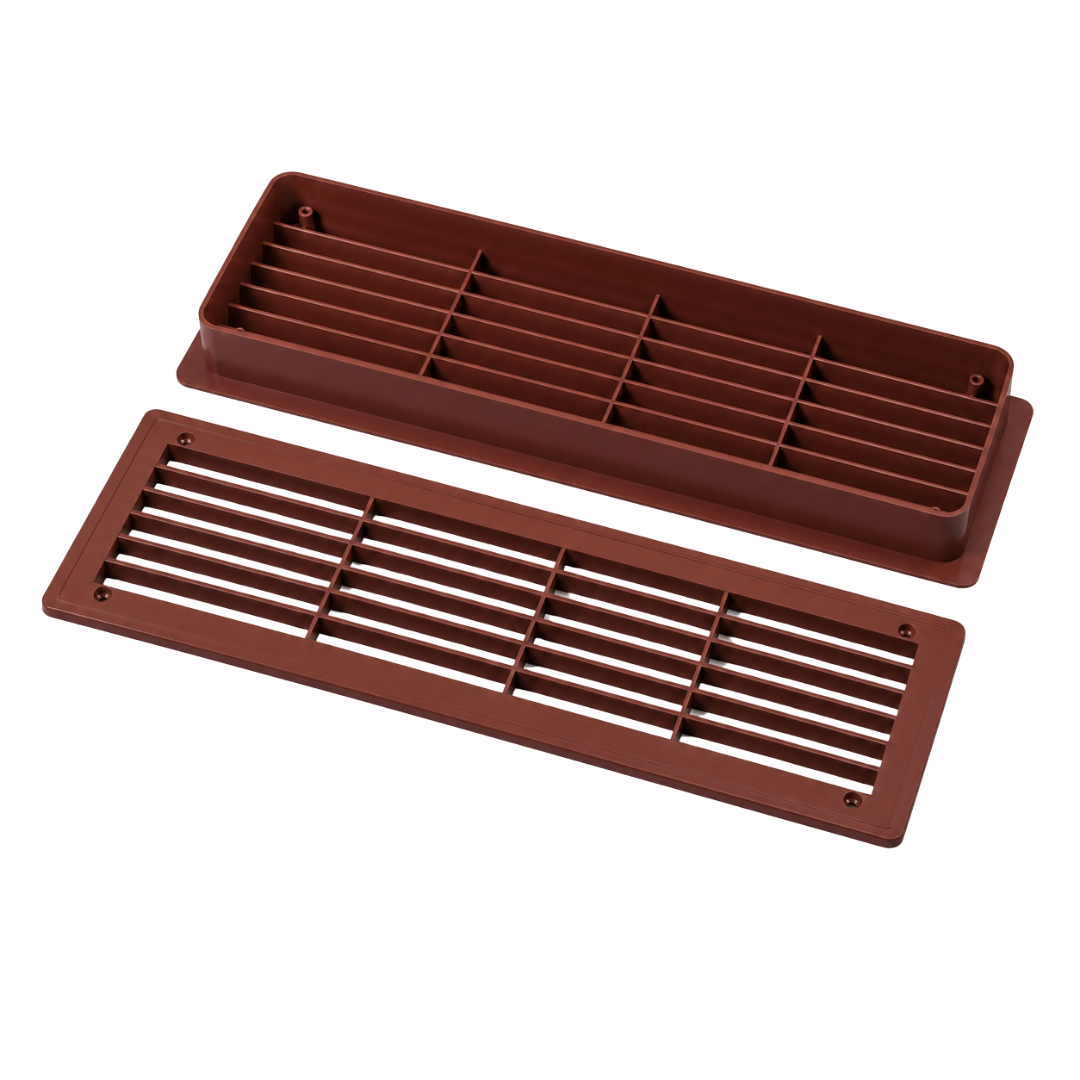

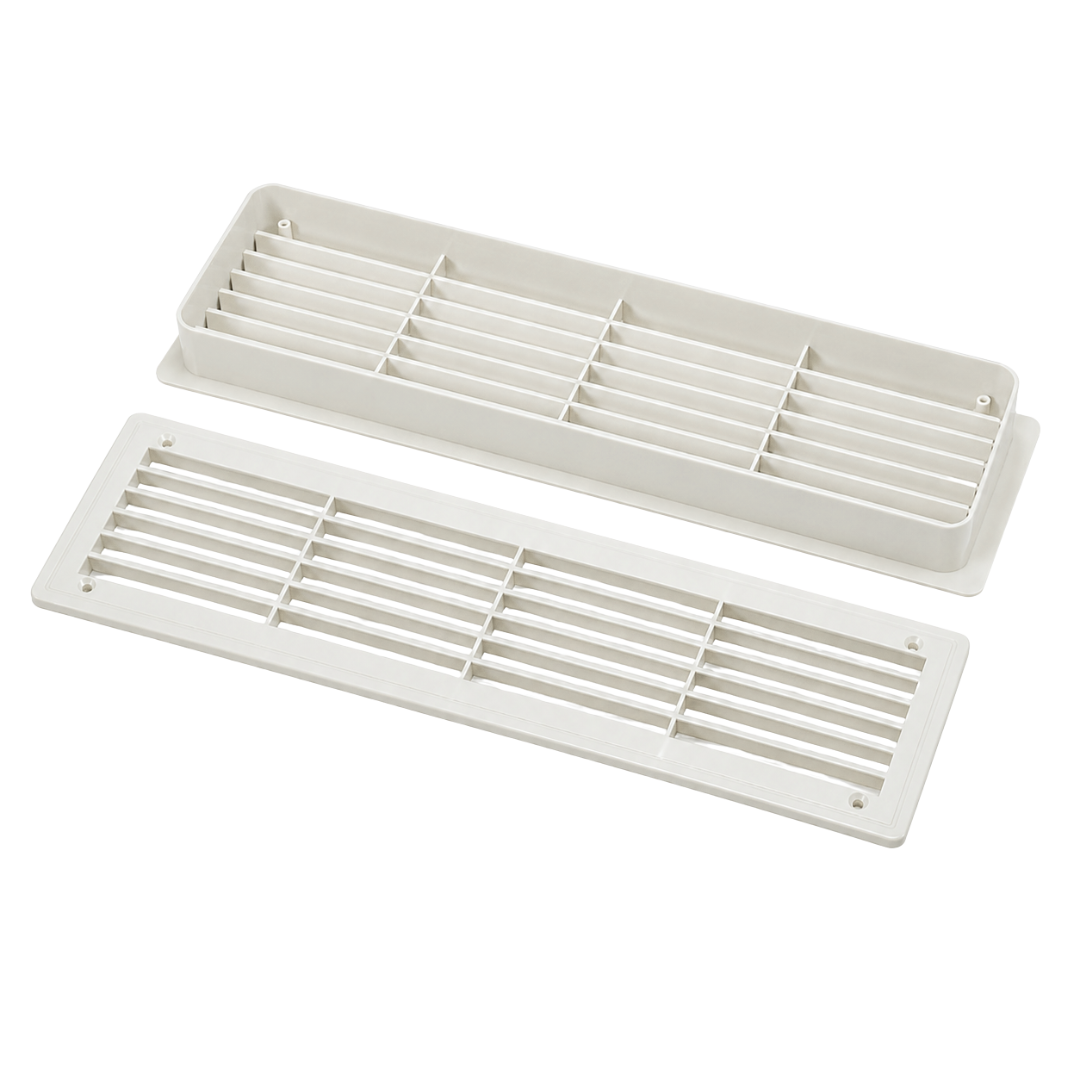

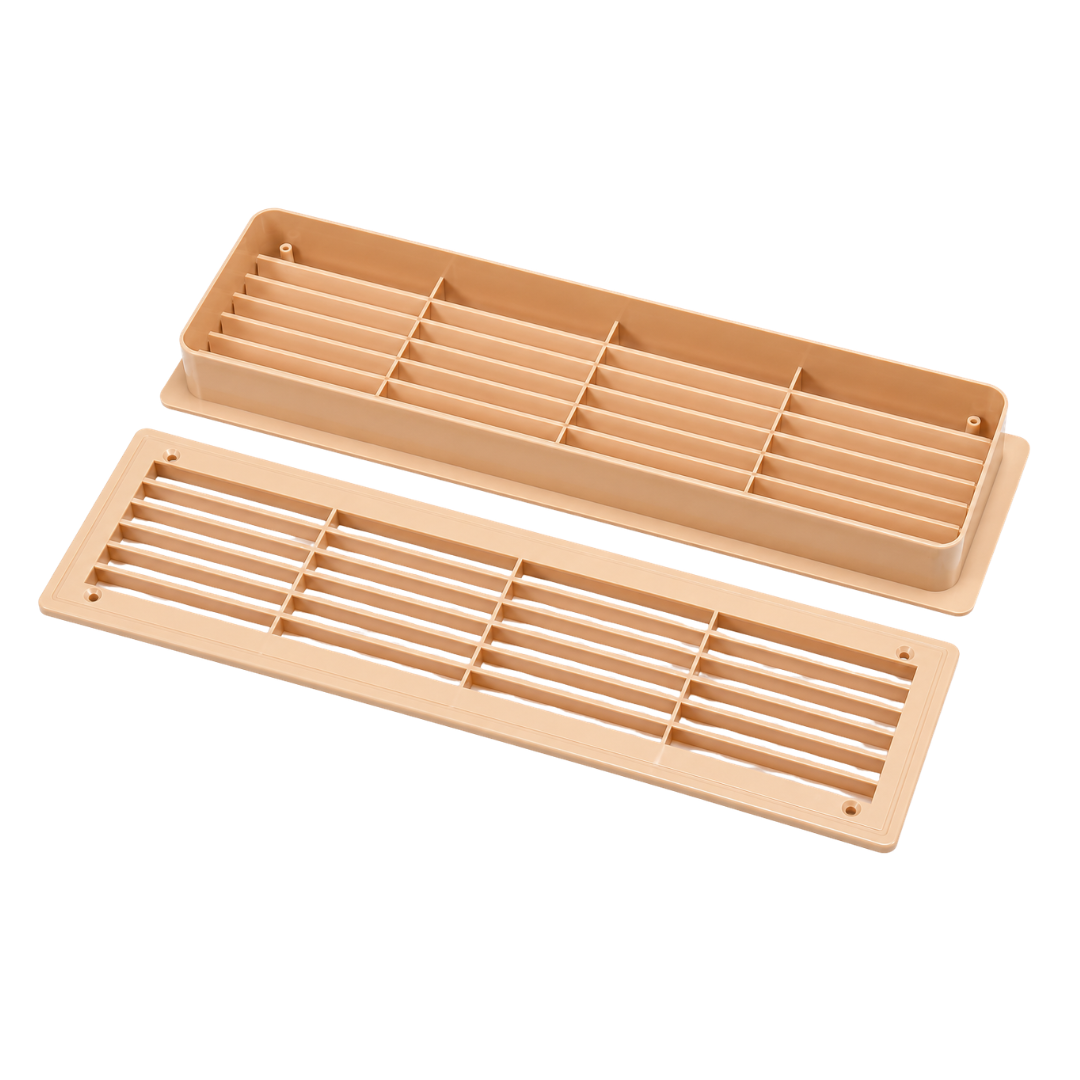

• Comes in two pieces – front and back. Includes installation hardware
• Constructed with high quality polypropylene plastic
• Conformant with provisions of Directive 2001/95/WE of the European Union and European Council on general product safety
• Fit: 17.3 x 4.7 Inches (440 x 120mm). Outside dimensions: 18.11 x 5.31 Inches (460 x 135mm)

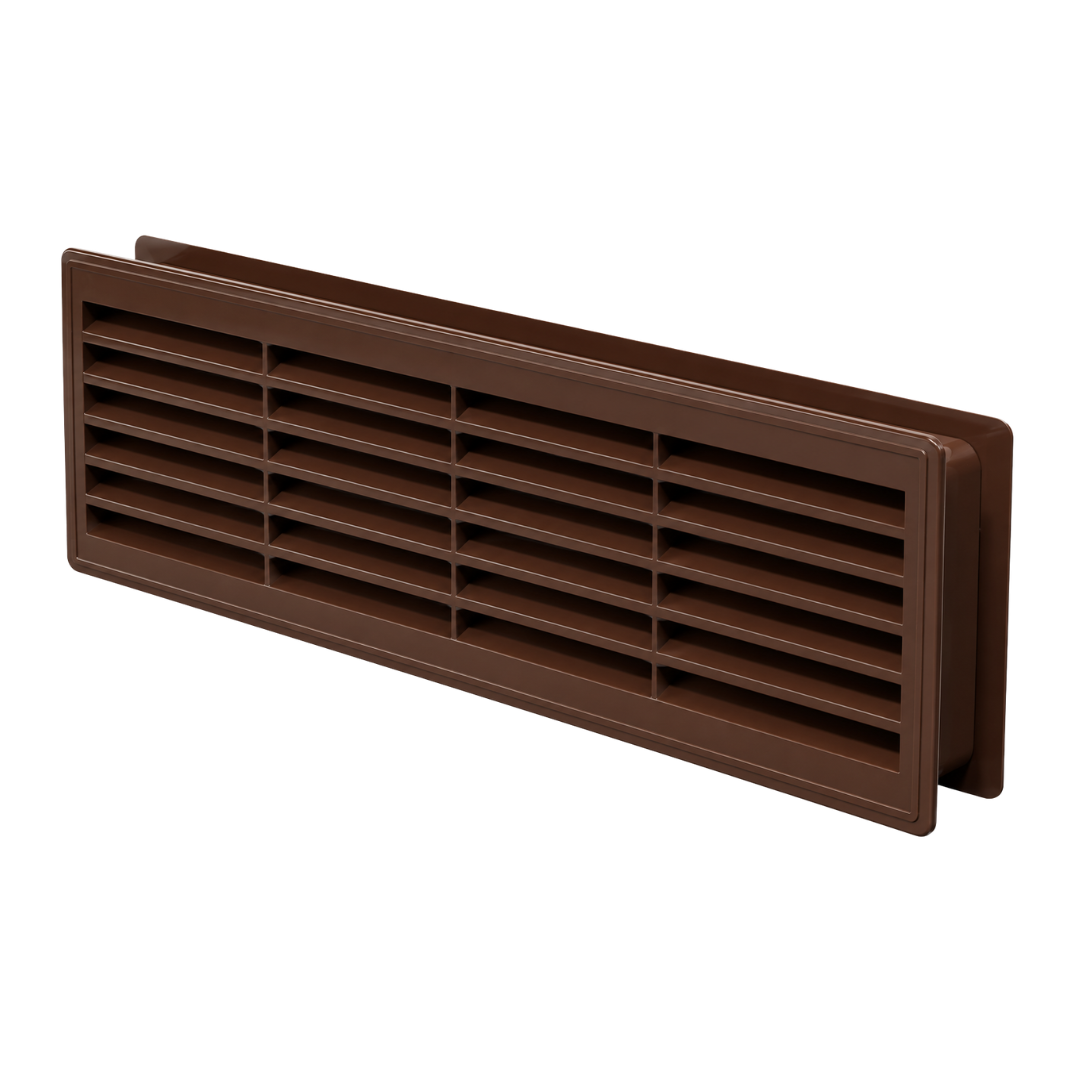

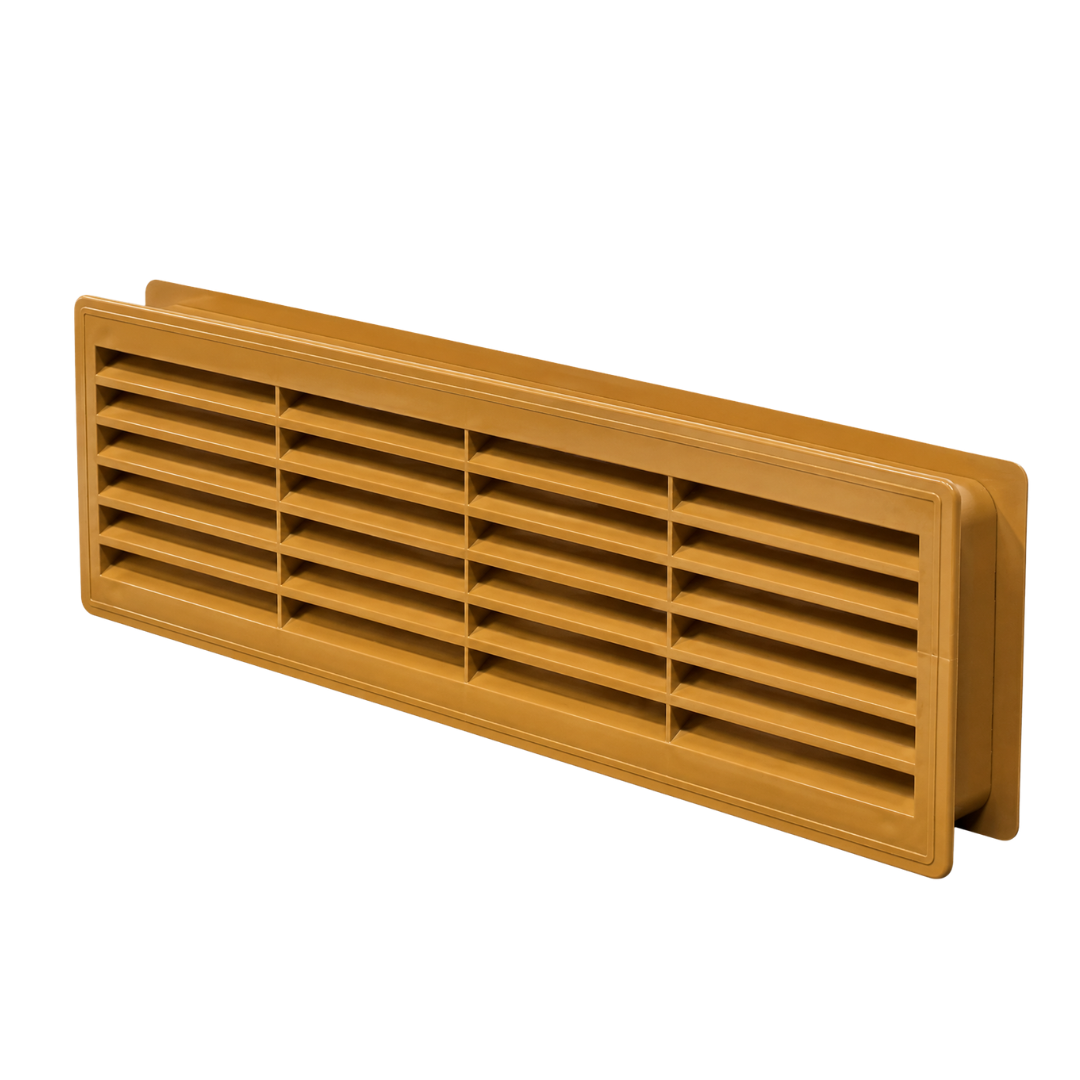

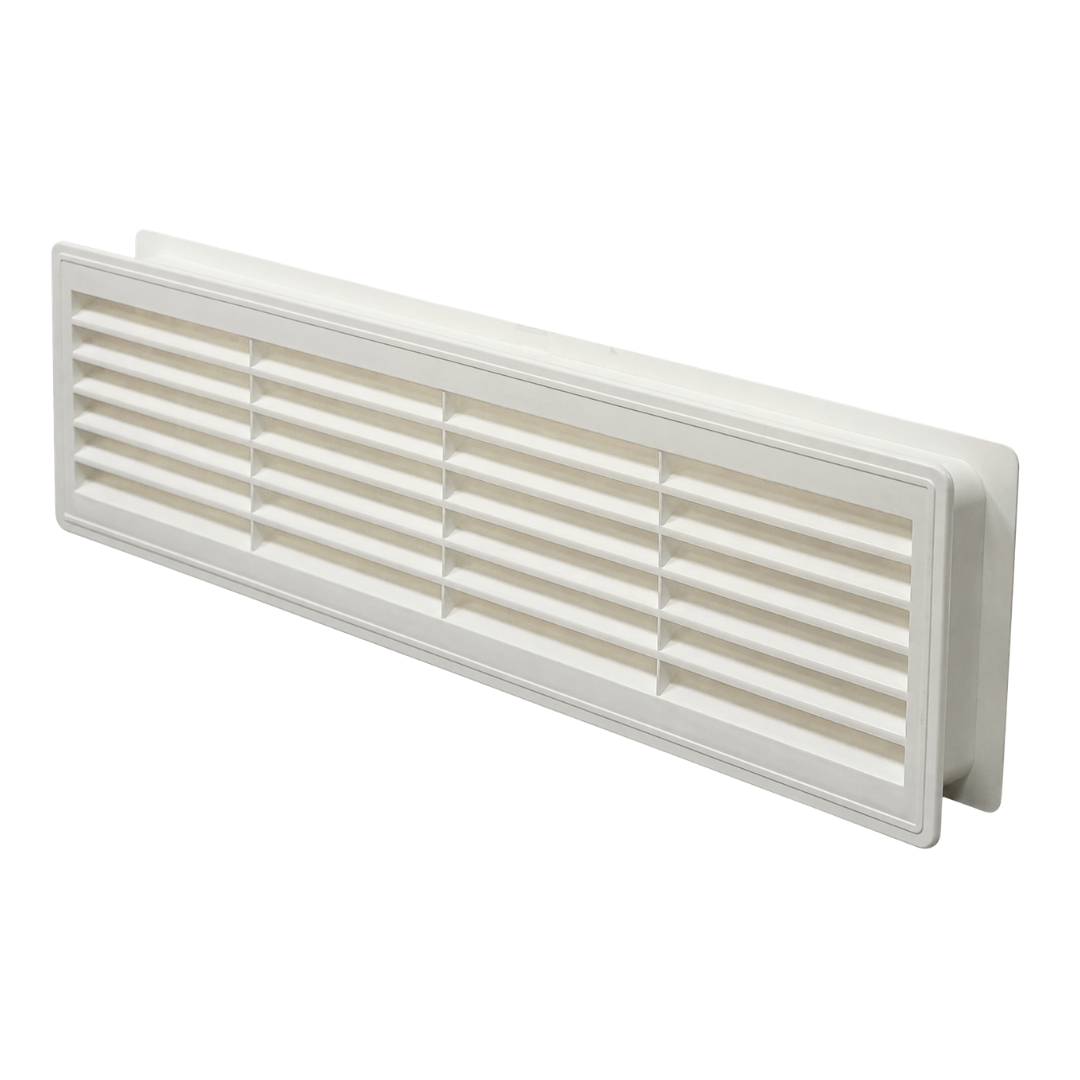

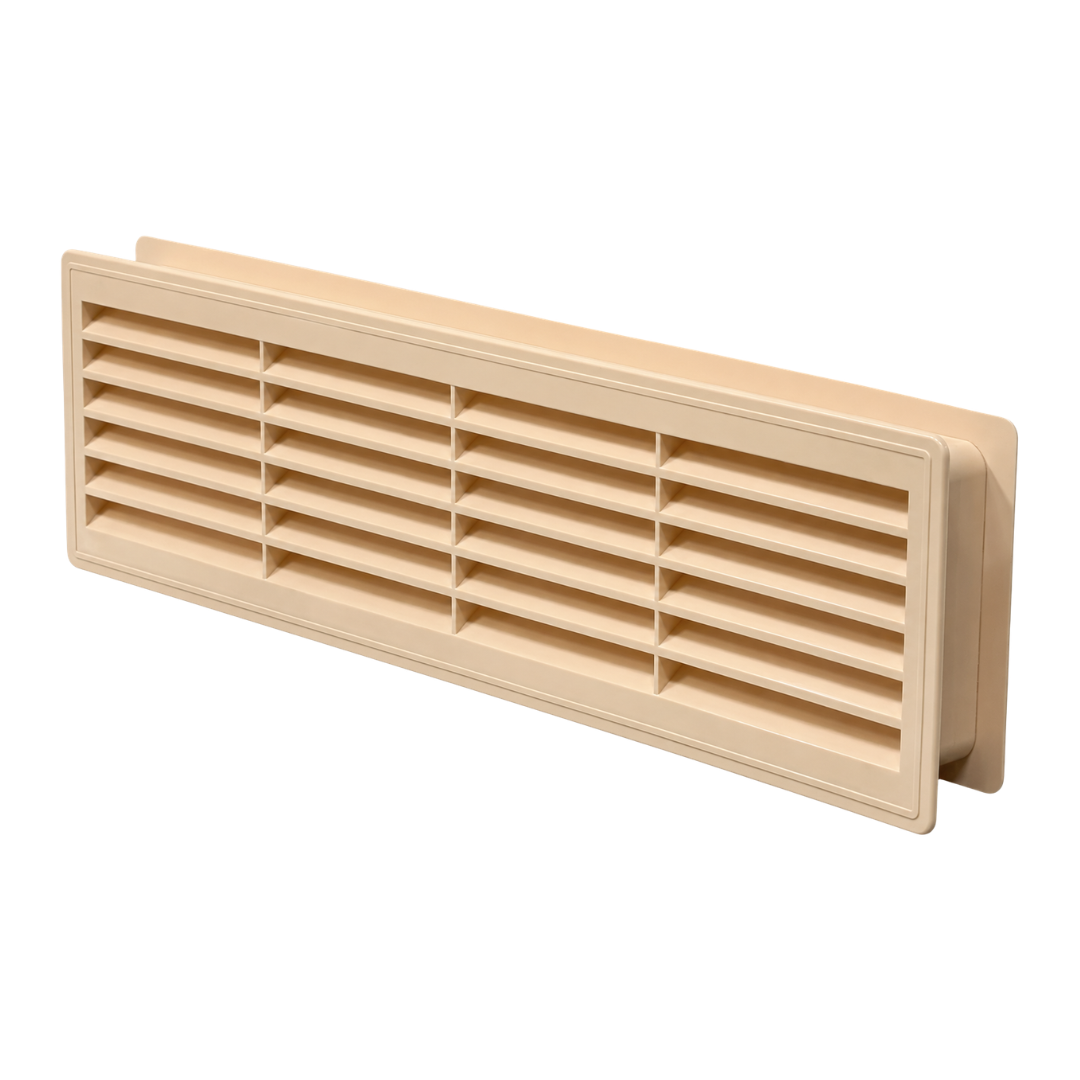

• Available in a range of colors: White, Grey, Brown, Mahogany, Oak, and Maple

Installation Guidance

• Measure neck size of door louver
• Cut hole in door based on neck size of grille + some minimal tolerance
• Place the grille front piece (without holes) into the cut hole on the primary (more visible) side of door
• Place the grille back piece (with holes) into the cut hole on the secondary (less visible) side of door
• Fix the grille pieces in place by screwing provided screws into the holes in the grille back piece, through to the matching threaded hole in the grille front piece


Downloads

• Specification Sheet
