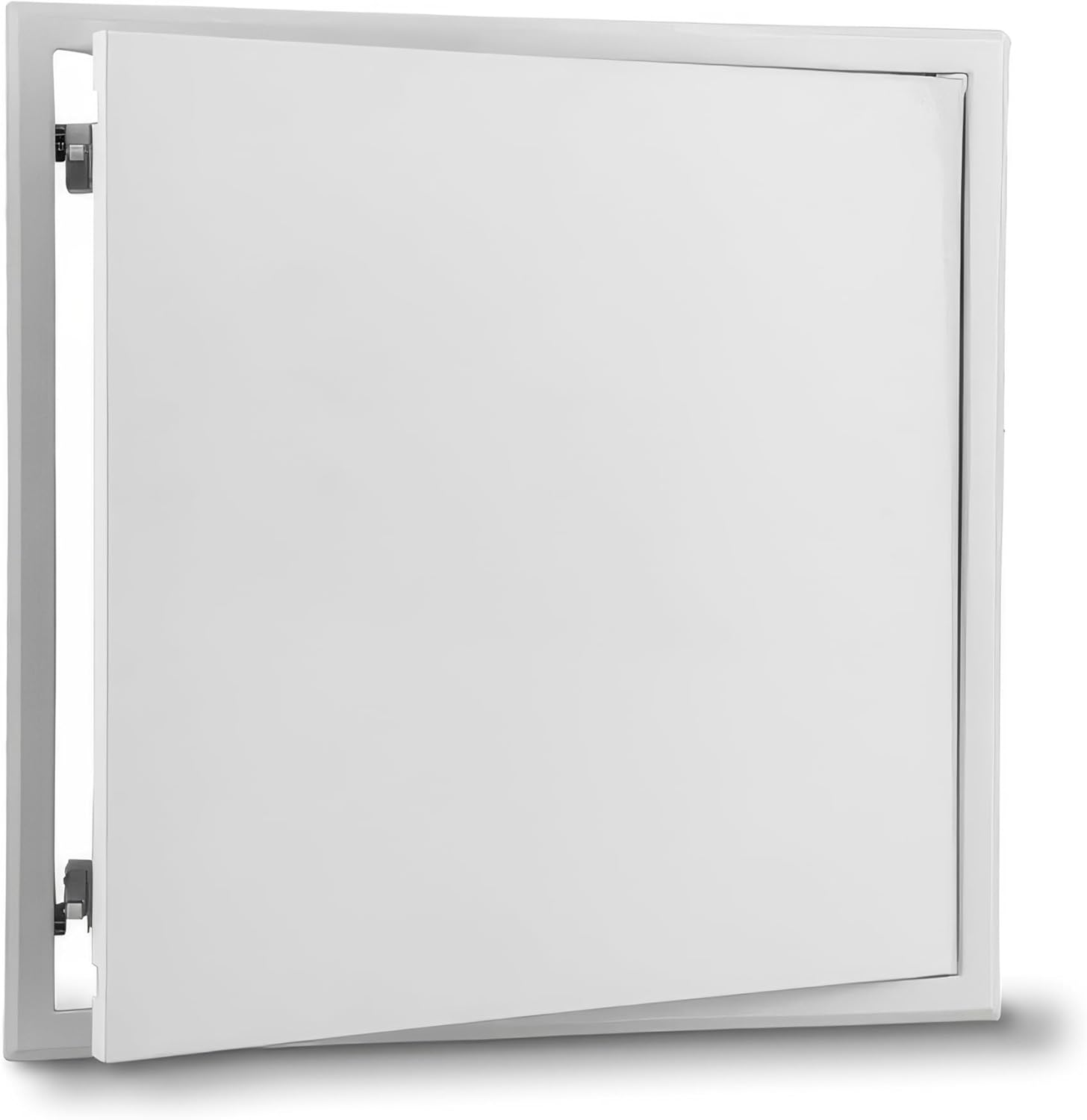

Introducing the White Metal Access Panel with Push Lock - the perfect solution for convenient and secure access to hidden areas in your home or office. This top-quality access panel is designed to provide easy entry to electrical connections, plumbing fixtures, and other concealed areas, making it an essential addition to any space.

• Durable Construction: Our access panel is constructed with quality white metal, ensuring long-lasting performance and resistance to wear and tear. It is built to withstand daily use and maintain its pristine appearance.
• Sleek Design: The clean and minimalist design of this access panel seamlessly blends into any environment, providing a polished finish to your walls or ceilings. The white metal finish complements a wide range of decor styles, enhancing the aesthetics of your space.

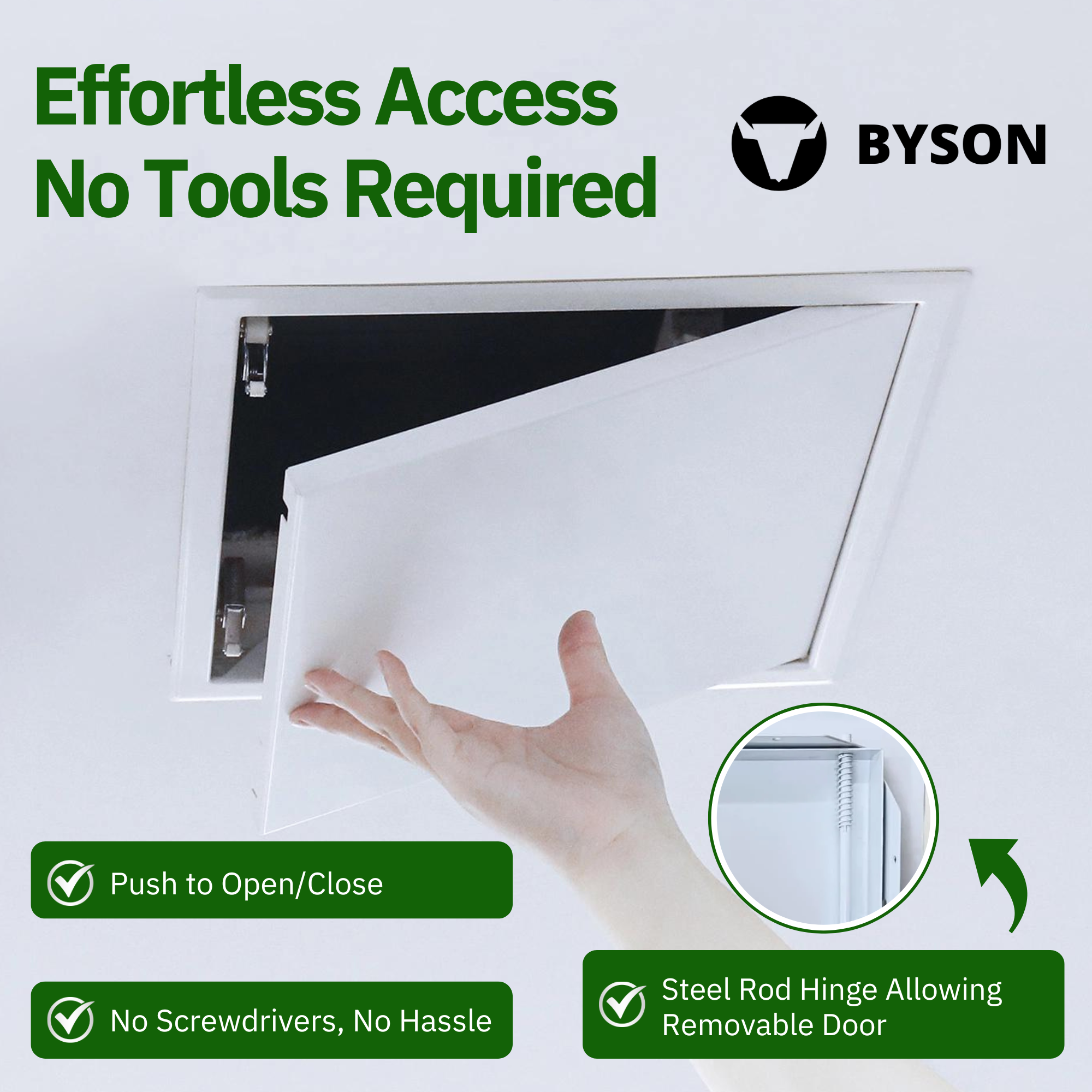

• Push Lock Mechanism: This access panel features a convenient push lock mechanism, allowing for quick and effortless access. The push lock design eliminates the need for additional tools or keys, streamlining the process and saving valuable time.
• Available Sizes: We offer a range of sizes to accommodate different access needs. From small dimensions for tight spaces to larger panels for more extensive areas, you can choose the size that best fits your requirements.

Installation Guide

Recommended installation method:
1.⁠ ⁠Fix two wooden beams (using drywall screws, not provided) to the inside of the drywall on the left and right side of the opening
2.⁠ ⁠⁠Fix the panel to the beams (with wood screws, not provided) by screwing through the 4 swing tabs (2 on each side) into the beam

Sizes

Product number      Nominal size       Neck size          Opening size         Overall size
                                    ( inches )         N1xN2(mm)        W1xL1(mm)        W2xL2 (mm)

BYMAPPW-0606            6 x 6                 147 x 147               145 x 145               185 x 185

BYMAPPW-0808            8 x 8                 197 x 197               195 x 195               235 x 235

BYMAPPW-1212          12 x 12                297 x 297               295 x 295              335 x 335

BYMAPPW-1216          12 x 16                297 x 397               295 x 395              336 x 436

BYMAPPW-1220          12 x 20                297 x 497               295 x 495              336 x 536

BYMAPPW-1616          16 x 16                397 x 397               395 x 395              435 x 435

BYMAPPW-1620          16 x 20                397 x 497               395 x 495              436 x 536

BYMAPPW-1624          16 x 24                397 x 597               395 x 595              436 x 636

BYMAPPW-2020          20 x 20                497 x 497               495 x 495              536 x 536

BYMAPPW-2024          20 x 24                497 x 597               495 x 595              536 x 636

BYMAPPW-2424          24 x 24                597 x 597               595 x 595              636 x 636

Note: The sizes listed are defined as "Neck Size". This is the primary measurement of an access panel, and is the size of opening that would be cut into the wall / ceiling to install the panel.

• Specification Sheet
