Byson FlowFrame - Door Louver Grilles w/ Double Frame, Plastic 5in x 18in
$24.15 CAD
Couldn't load pickup availability
Product Description

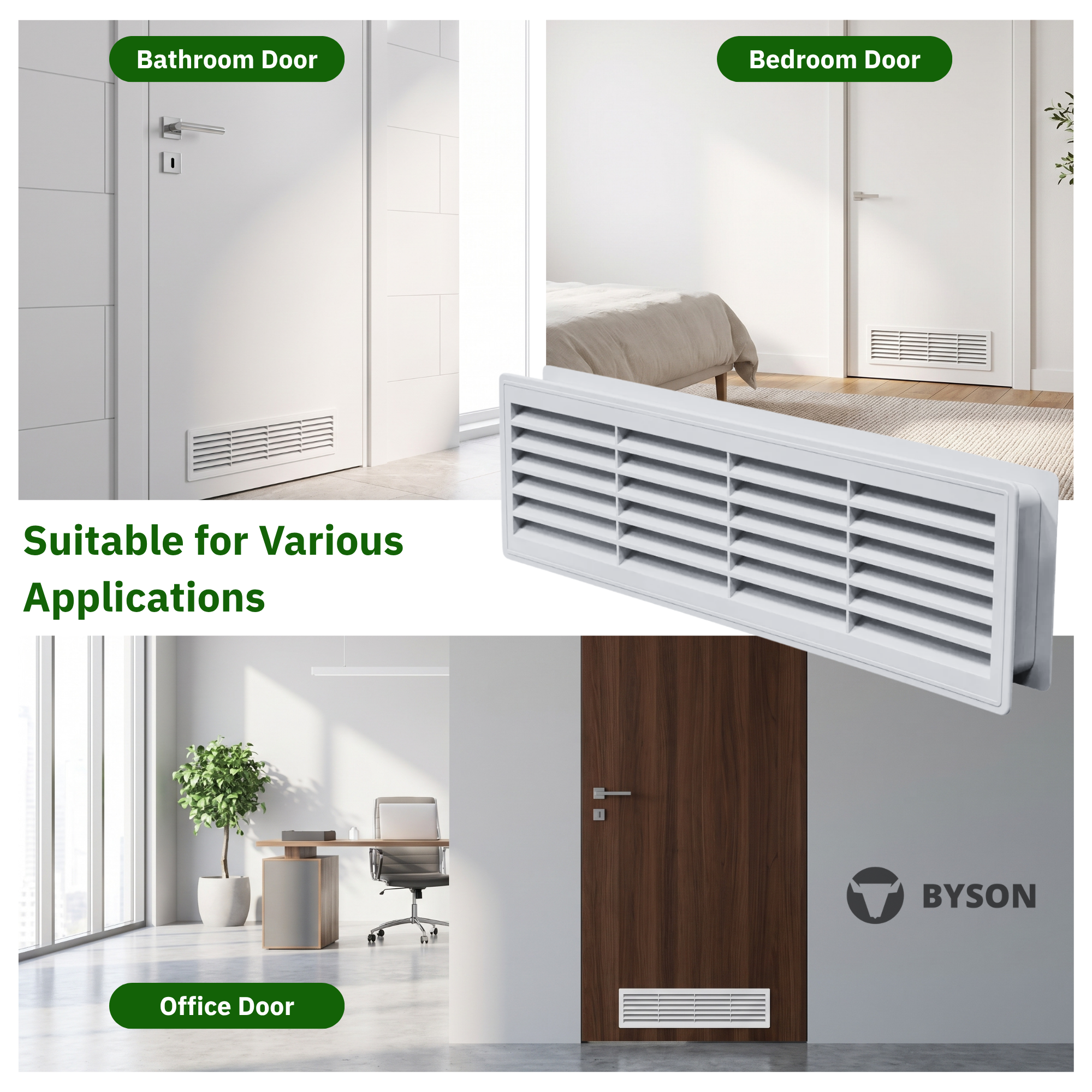

- Ideal for ensuring proper airflow through interior doors in apartments, condos, offices, and utility rooms — while keeping a clean, finished look on both sides of the door
- Purpose-built for laundry closet doors housing ventless (condenser or heat pump) dryers, where manufacturer instructions require air circulation even though no exterior duct is needed
- Also suited to pantries, mechanical closets, and any enclosed space where trapped heat or humidity is a concern
- Installs directly into an existing door — no need to replace the door or modify the frame
Features

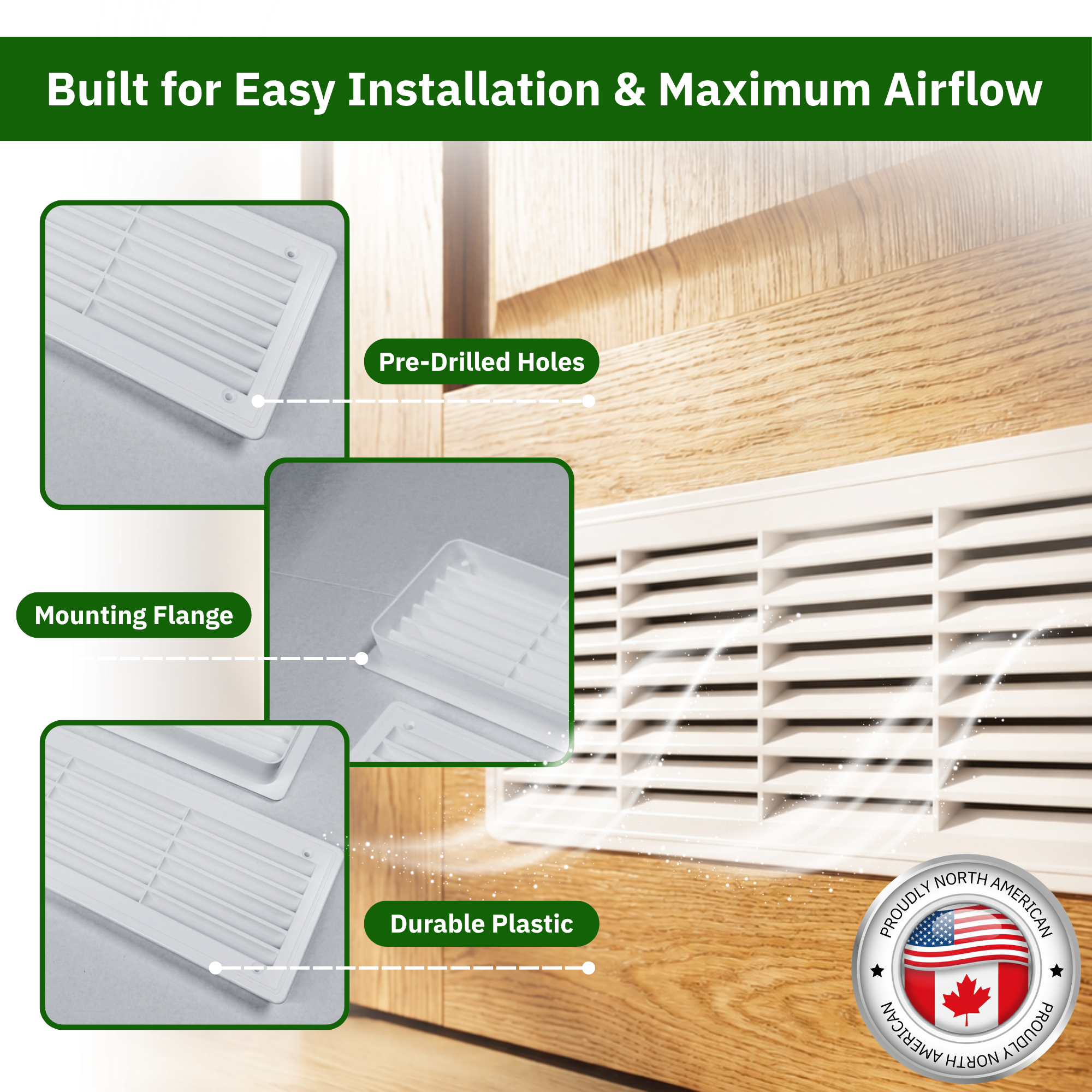

- Comes with a front and rear frame for a finished appearance on both sides of the door
- Includes all installation hardware
- Constructed with high-quality polypropylene plastic — won't warp, rust, or rot like wood louvers
- Fixed-louver design blocks sightlines through the door while maintaining continuous airflow
- Conformant with provisions of Directive 2001/95/WE of the European Union and European Council on general product safety
Finishes
Available in six colors to match existing door hardware and trim: White, Grey, Brown, Mahogany, Oak, and Maple

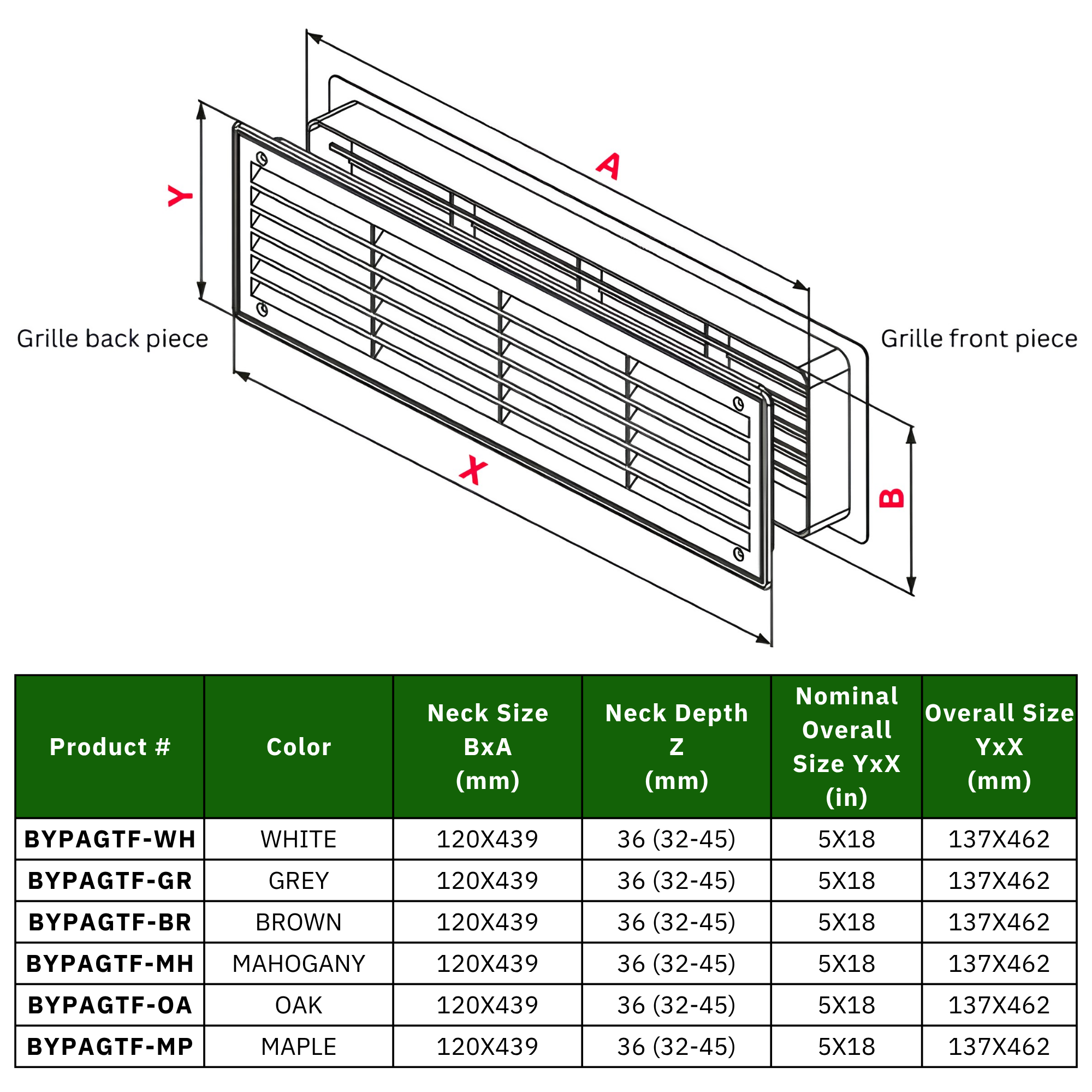

Sizing
- Designed for door thickness of 1-3/8" (1.38"–1.42"); adjustable neck depth accommodates doors from 1.26" to 1.78"
- Cut-out (fit) dimensions: 17.3" x 4.7" (440 x 120mm)
- Outside/visible frame dimensions: 18.11" x 5.31" (460 x 135mm)

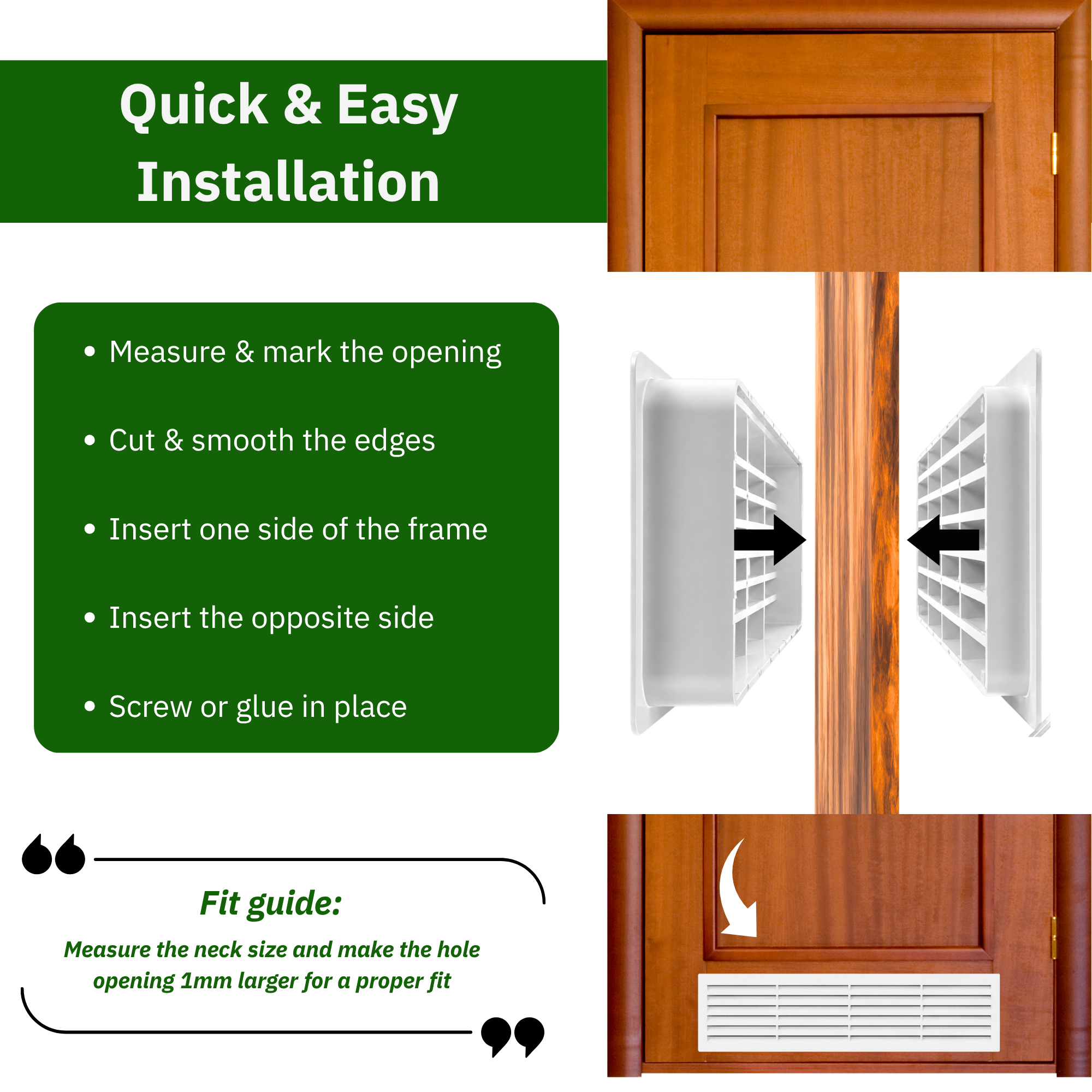

Installation Guidance
- Measure the neck size of the door vent grille
- Cut an opening in the door matching the neck size, plus minimal tolerance
- Insert the front piece (no visible holes) into the primary, more visible side of the door
- Insert the rear piece (with mounting holes) into the secondary side of the door
- Secure by screwing through the rear piece into the matching threaded holes on the front piece
Full step-by-step instructions available in the spec sheet download below.
